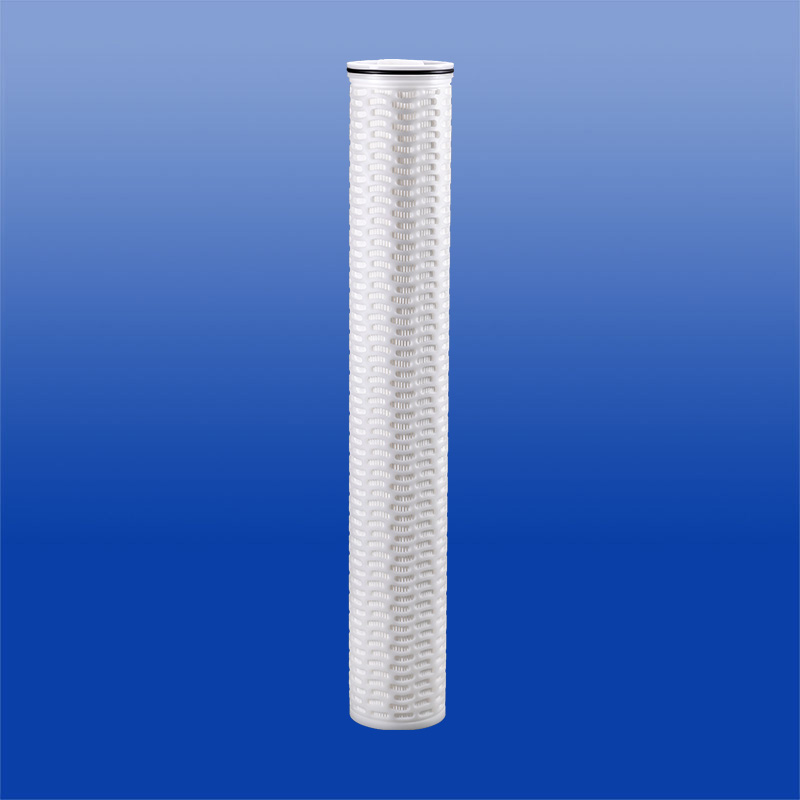

XHF Series High Flow Pleated Filter Cartridges

XHF Series High Flow Pleated Filter Cartridges

XHF series high flow pleated filter cartridges are designed for cost-effective, highly efficient particle filtration in high flow rate food & beverage and industry applications. XHF series pleated depth media cartridges provide...

XHF series high flow pleated filter cartridges are designed for cost-effective, highly efficient particle filtration in high flow rate food & beverage and industry applications. XHF series pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in high-purity fluid filtration applications. They are available available in polypropylene (PP) and in a variety of filter grades.

Features

  • Available in particle removal rating from 0.3 to 100 microns
  • 100% PP components provide wide chemical compatibility, suitable for use in a variety of fluids
  • Multiple pleated layers media construction with large filtration area and pleated structure lower pressure drop and longer service life
  • The pleated media in large diameter reduces operating costs, makes change out quickly and easily
  • High dirt holding capacity and protects filtrate from recontamination by trapping particulates inside the cartridge

Application

  • Food & Beverage
  • RO Pre-Filtration
  • Process water(Pre-RO, Cooling…)
  • Sea water desalination
  • Ground/Reclaimed/Wastewater
  • Oil & Chemical
  • Fine chemicals

Specifications

Dimension
Outer Diameter154mm(6")
Lengths20”, 40”, 60”, 80”
Material of Constructions
MediaPP
Cage / Core / End capPP
Seal Material OptionsSilicone, EPDM, NBR, FKM, E-FKM
Performance
Max. Operating Temperature80°C (176°F)
Max. Operating DP2.4 Bar(35psi)@20℃(68° F)
Recommended Change out DP2.2 Bar(32psi)@20°C(68° F)

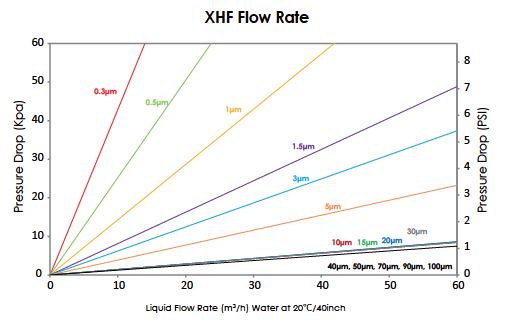

Flow Rate

Quality

  • Manufactured in a clean room environment
  • Manufactured according to ISO9001:2015 certified Quality Management System

Food Contact Compliance

  • Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
  • Meet the requirements of European Commission Directives ((EU) 10/2011)

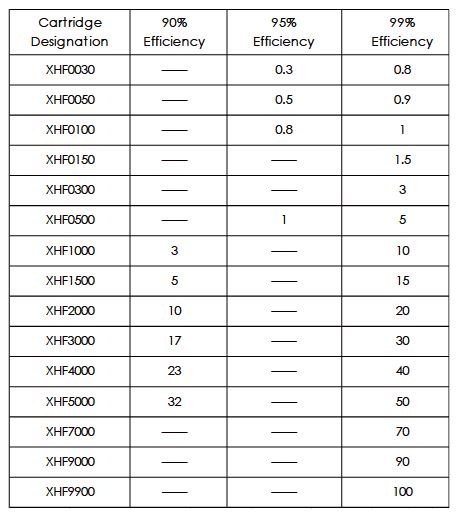

Particle Removal Ratings (μm)

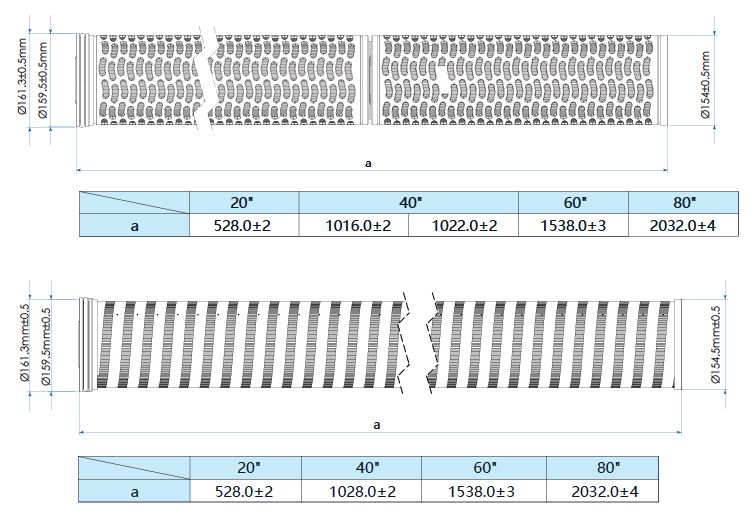

Dimensions

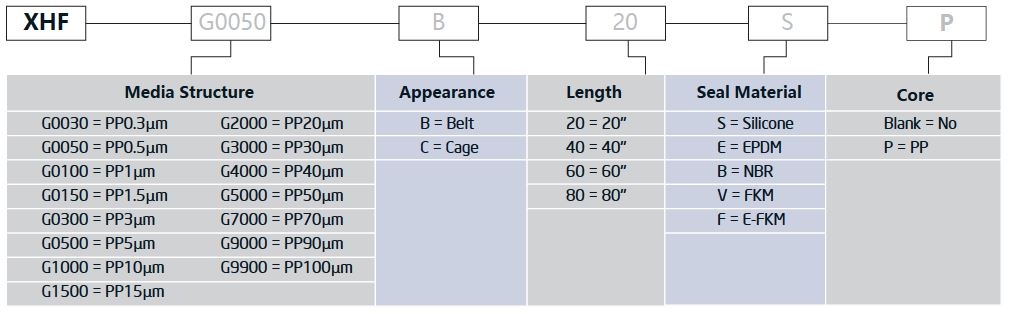

Order Information
