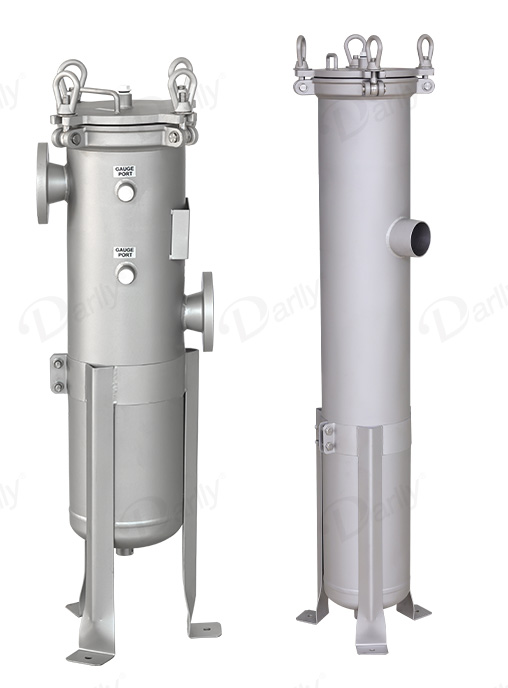

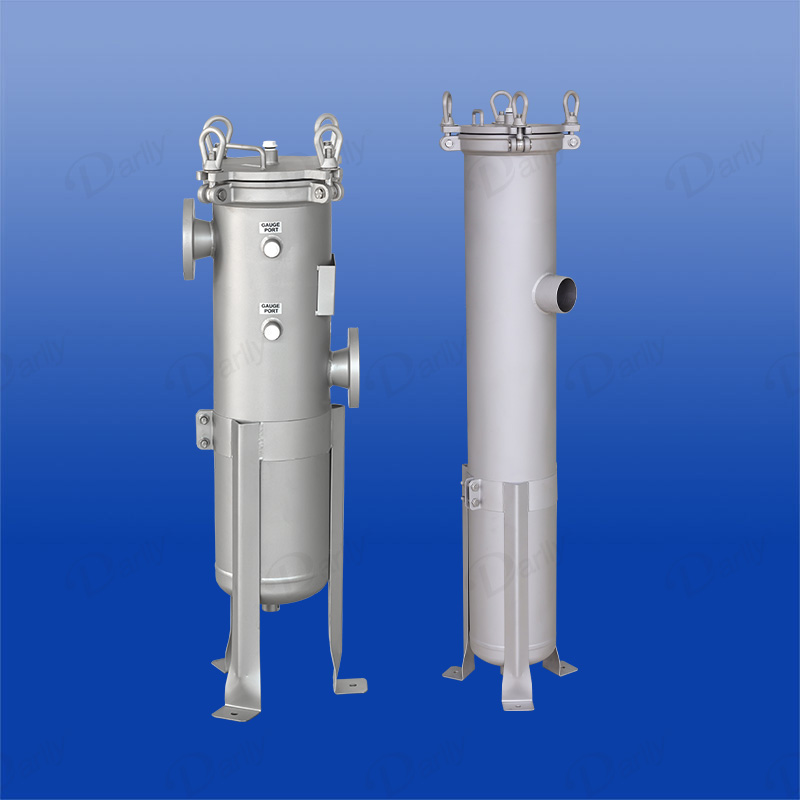

SBHF Series Single-round High Flow Filter Housings w/ Swing Bolt Closure

SBHF Series Single-round High Flow Filter Housings w/ Swing Bolt Closure

The Single- Round High- Flow Filter Housings are designed for Food, Beverage, and Industrial applications, offering long service life and high flow capacity. Constructed from high- quality stainless steel components, these hous...

The Single- Round High- Flow Filter Housings are designed for Food, Beverage, and Industrial applications, offering long service life and high flow capacity. Constructed from high- quality stainless steel components, these housings ensure consistent performance and durability. The swing- bolt closure system allows for easy maintenance and safe operation. Key features include FNPT or flange connections for the inlet and outlet, with vessel orientation options available in horizontal (SBHFH Series) or vertical (SBHFV Series) configurations.

▎Features


  • Rugged swing-bolt closure allows easy access for cartridge changes
  • Strengthened, welded legs provide a stable and durable installation
  • 150 psi (10 bar) operating pressure rating
  • Designs adhere to requirements of the ASME Pressure Vessel Code
  • "U" Code stamping options are available
  • Can support flow rates to 600 GPM
  • Surface passivation reduces potential for weld line corrosion

▎Applications


  • Suitable for the broadest range of industrial applications from process fluid streams for water, aqueous solutions, oils, and fine chemicals
  • Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water

▎Materials of Construction


Shell ComponentsAISI304 or AISI316L Stainless Steel
Seal OptionsSILICONE, EPDM(standard), FKM, NBR

▎Operating Conditions


Operating Temperature121°C (250°F) max.
Design Pressure10 bar (150 psi)

▎Surface Finish


Surface Quality

Glass beaded finish is standard Industrial electropolish is optional

▎Product Quality


  • Manufactured within an ISO 9001:2015 certified quality management system
  • Certified to NSF/ANSI-61 and 372
  • Halal certified
  • Certification of Quality document can be provided upon request

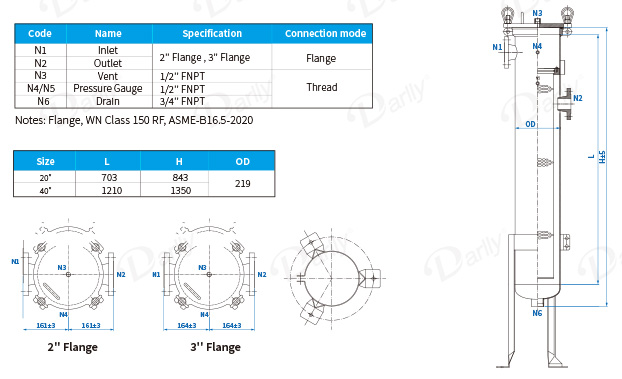

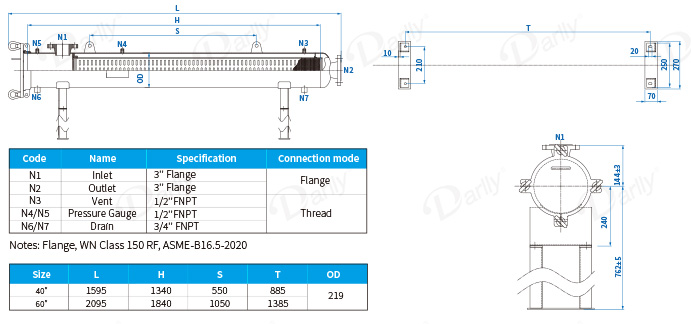

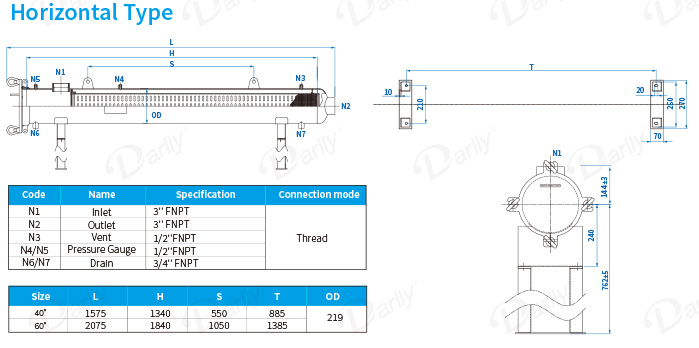

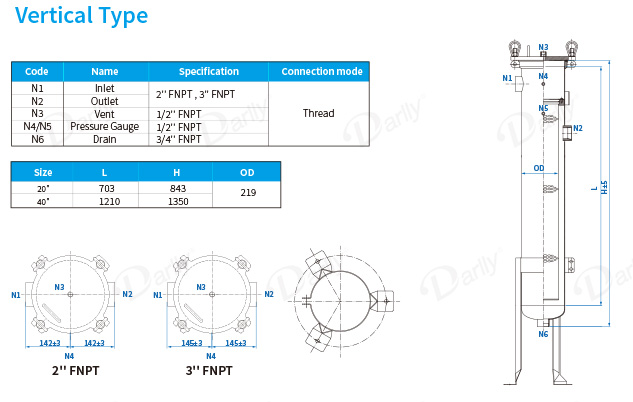

Dimensions (mm)

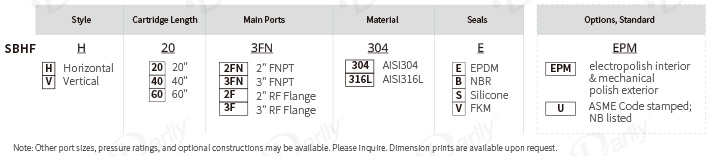

Order Information
