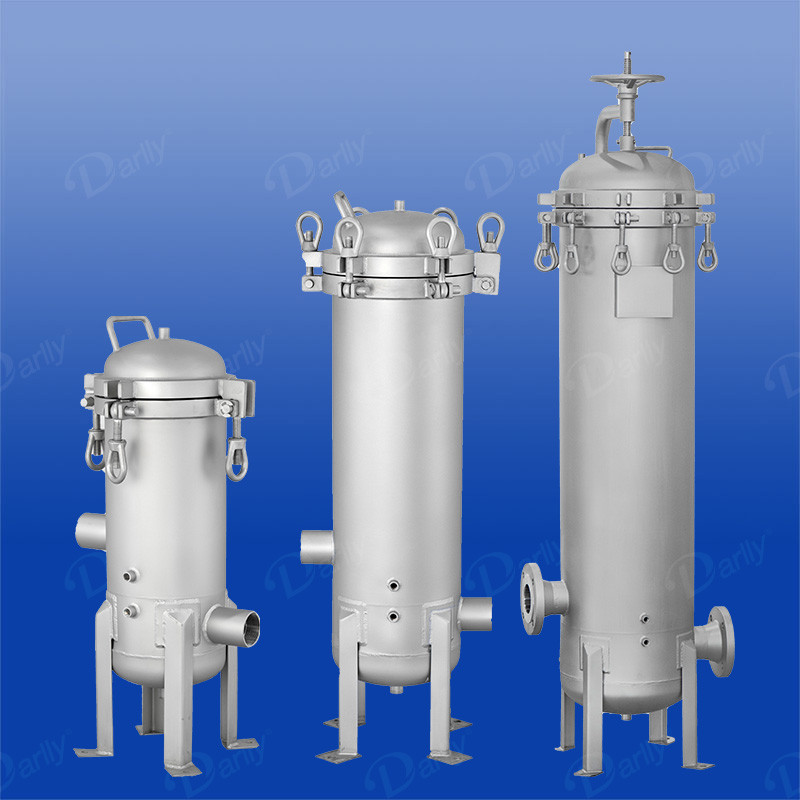

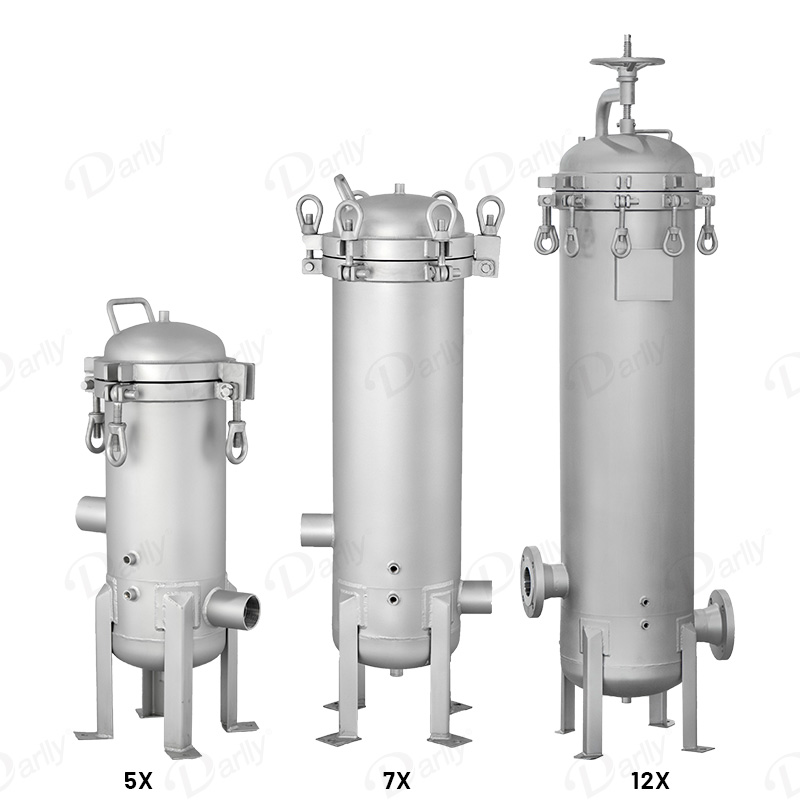

SBC Series Multi-Cartridge Liquid FilterHousings w/Swing Bolt Closure

SBC Series Multi-Cartridge Liquid FilterHousings w/Swing Bolt Closure

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. The flexible design accommodates DOE, 222/FIN, and 222/FLAT style cartridges. They accept standard 2.5” to 2.79"OD filter c...

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. The flexible design accommodates DOE, 222/FIN, and 222/FLAT style cartridges. They accept standard 2.5” to 2.79"OD filter cartridges in configurations of up to 51-around and up to 40" cartridge length.
This housing series offers a great many options for cartridge quantity, flow rate capacity, and porting. They're the standard choice to support higher flow rate applications with abundant options for cartridge media types and retention ratings.

▎Features


  • Rugged swing-bolt closure allows easy access for cartridge changes
  • Strengthened, welded legs provide a stable and durable installation
  • 150 psi (10 bar) operating pressure rating
  • Designs adhere to requirements of the ASME Pressure Vessel Code
  • "U" Code stamping options are available
  • Davit arm hand wheel features improved ease of operation (12 around and up)
  • Can provide flow rates to 1,200 GPM and beyond
  • Surface passivation reduces potential for weld line corrosion

▎Applications


  • Suitable for the broadest range of industrial applications from process fluid streamsforwater, aqueous solutions, oils, and fine chemicals
  • Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water

▎Materials of Construction


Shell ComponentsAISI304 or AISI316L Stainless Steel
Seal OptionsEPDM (standard), SILCONE, NBR,FKM

▎Operating Conditions


Operating Temperature121°C (250°F) max.
Design Pressure10 bar (150 psi)

▎Surface Finish


Surface Quality

Glass beaded finish is standard Industrial electropolish is optional

▎Product Quality


  • Manufactured within an ISO 9001:2015 certified quality management system
  • Certified to NSF/ANSI-61 and 372
  • Halal certified
  • Certification of Quality document can be provided upon request

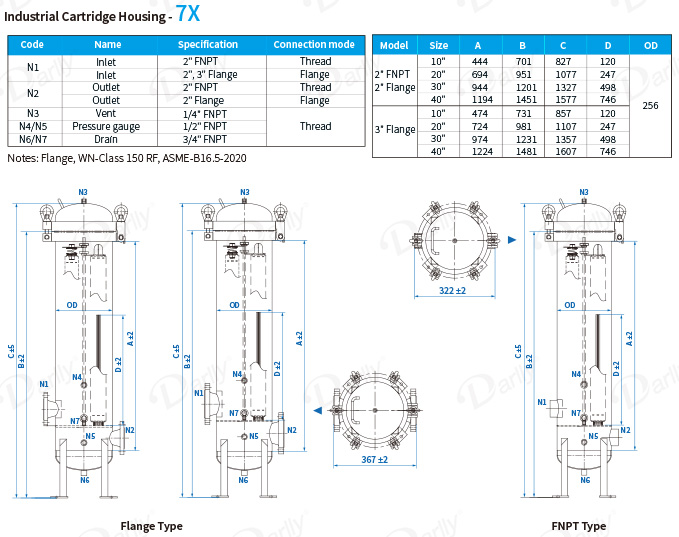

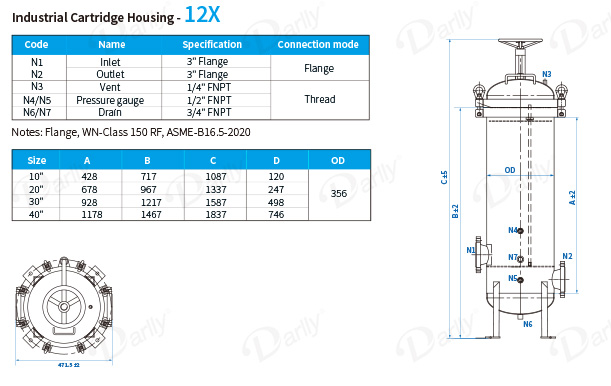

▎Dimensions (mm)

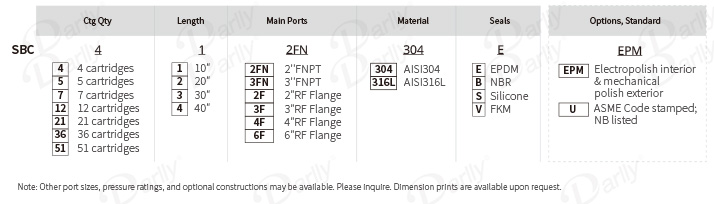

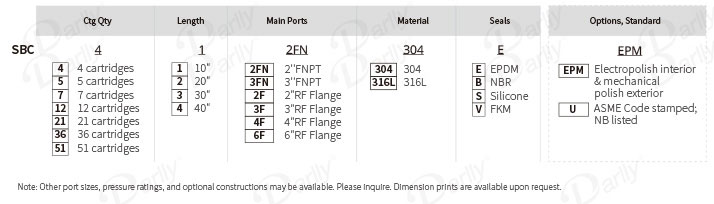

▎Order Information
