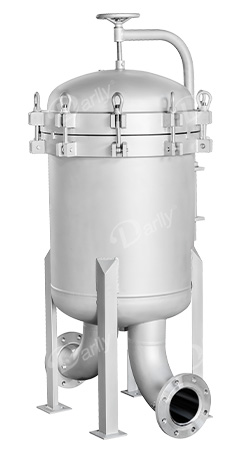

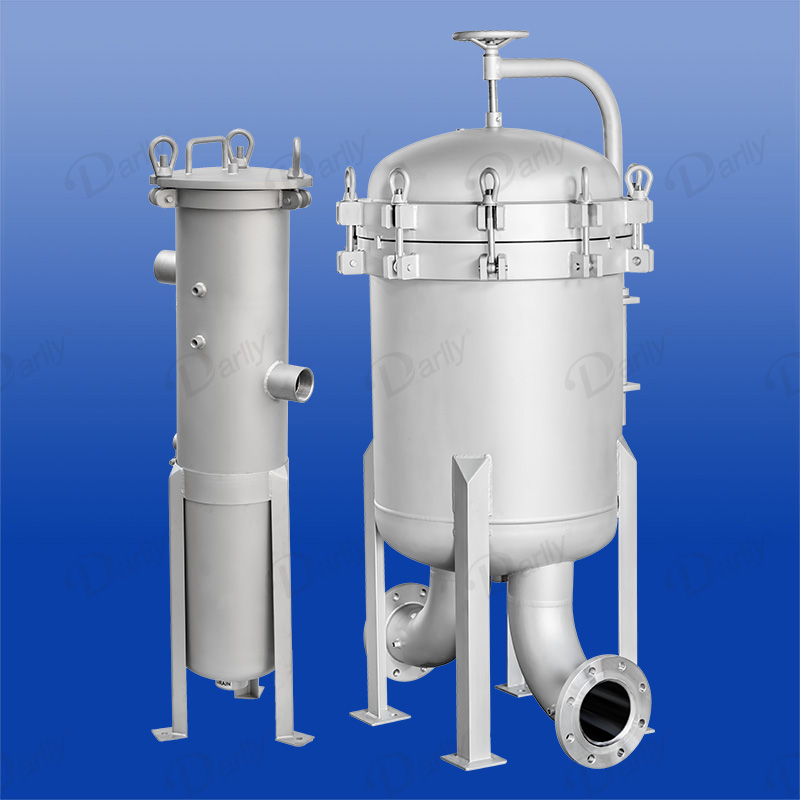

SBB Series Single & Multi Bag Filter Housings w/ Swing Bolt Closure

SBB Series Single & Multi Bag Filter Housings w/ Swing Bolt Closure

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. Single-bag housings accept standard Size #1 or Size #2 bag. Multi-bag housings accept 2, 3, 4, 6, 8, or 12 Size #2 bags. Mu...

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. Single-bag housings accept standard Size #1 or Size #2 bag. Multi-bag housings accept 2, 3, 4, 6, 8, or 12 Size #2 bags. Multiple options for porting type and size. Provided standard with upstream & downstream gauge ports and lid-mounted vent port.

▎Features


  • Rugged swing-bolt closure allows easy access for bag change-out
  • Adjustable leg assembly on single-bag models offers installation flexibility
  • 150 psi (10 bar) operating pressure rating
  • Designs adhere to requirements of the ASME Pressure Vessel Code
  • "U" Code stamping options are available
  • Can provide flow rates up to 1,200 GPM
  • Surface passivation reduces potential for weld line corrosion

▎Applications


  • Suitable for the broadest range of industrial applications from process fluid streams for water, aqueous solutions, oils, and fine chemicals
  • Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water

▎Materials of Construction


Shell ComponentsAISI304 or AISI316L Stainless Steel
Seal OptionsEPDM (standard), SILICONE, NBR, FKM

▎Operating Conditions


Operating Temperature121°C (250°F) max.
Design Pressure10 bar (150 psi)

▎Surface Finish


Surface Quality

Glass beaded finish is standard Industrial electropolish is optional

▎Product Quality


  • Manufactured within an ISO 9001:2015 certified quality management system
  • Certified to NSF/ANSI-61 and 372
  • Halal certified
  • Certification of Quality document can be provided upon request

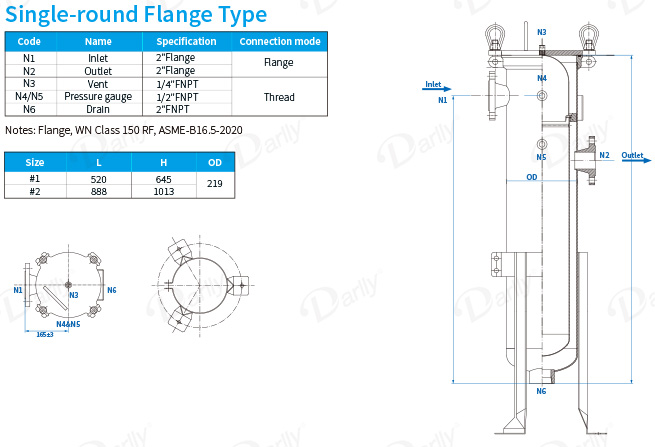

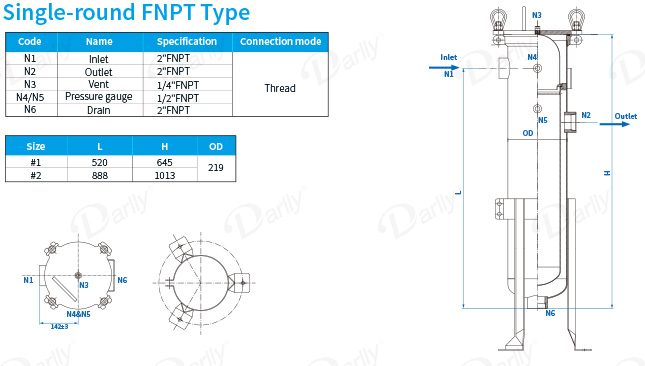

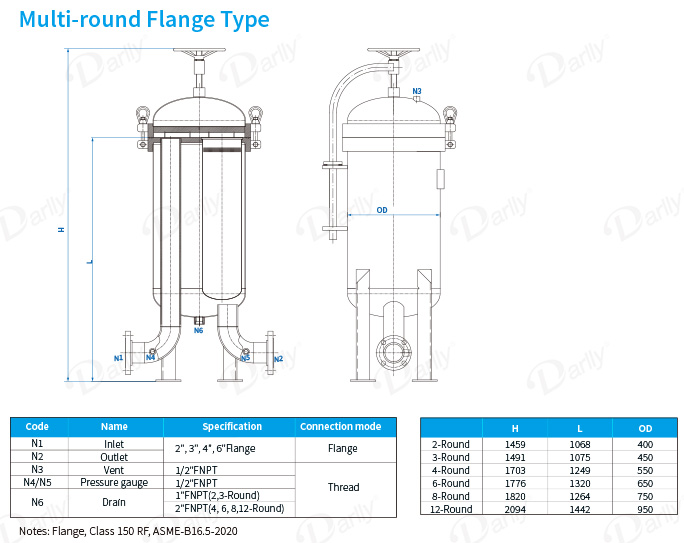

Dimensions (mm)

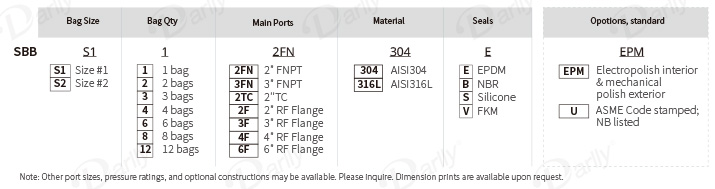

Order Information
