OHF Series Pleated Filter Cartridges
OHF Series Pleated Filter Cartridges are made of high performance glass fiber material that features a high flow rate and high efficiency, etc. The filter cartridge has a high dirt-holding capacity and long service life. A bind...
OHF Series Pleated Filter Cartridges are made of high performance glass fiber material that features a high flow rate and high efficiency, etc. The filter cartridge has a high dirt-holding capacity and long service life. A binding band strengthens it externally to secure the media stable. Its end cap construction adopts POM+20%GF material, which presents a filter cartridge with excellent chemical compatibility. It is widely used in the power energy industry for oil purification and filtration.

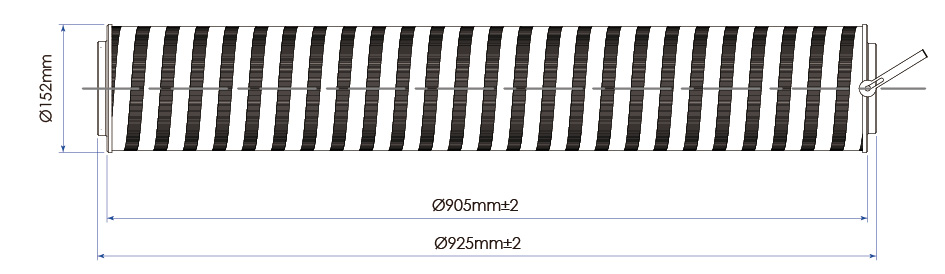

| Diameter | 152mm |
| Length | 40” |
| Filtration Area | 5.66m2 |
| Media | GF |
| Support | PET |
| End Cap | POM+20%GF |
| Max Operating Temperature | 80℃(176℉) |
| Max Operating DP | 2.4 bar(35psi)/ 20℃(68℉) |
| Replaced DP | 2.2 Bar(32psi)/ 20℃(68℉) |
