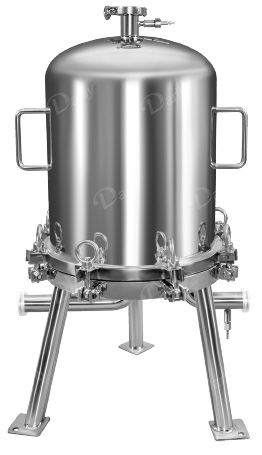

H Series Depth-Stack Type Sanitary Filter Cartridge Housings
Manufactured of 304 or 316L stainless steel with an extraordinary degree of surface polish. The sanitary design includes TC-type fittings and offers smooth, crevice-free surfaces. Easy to disassemble and presents the ultimate i...
Manufactured of 304 or 316L stainless steel with an extraordinary degree of surface polish. The sanitary design includes TC-type fittings and offers smooth, crevice-free surfaces. Easy to disassemble and presents the ultimate in cleanability. Accept standard sizes of depth-stack cartridges of 8", 12", and 16" diameter up to four modules height.
These are a preferred choice in the pharmaceutical, bio-technology, and food & beverage industries.

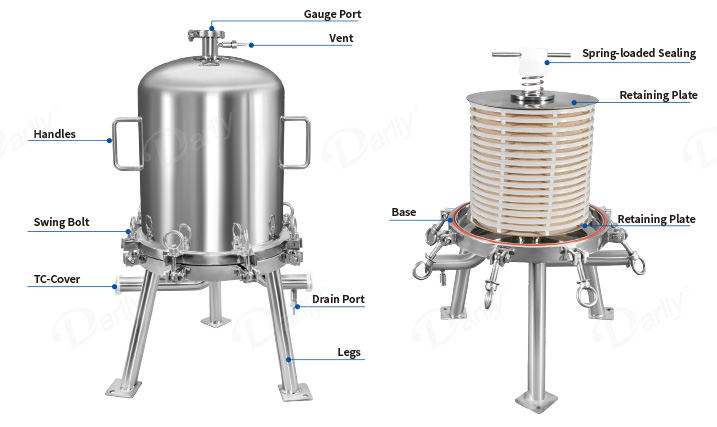

▎Features
- Ultra-high degree of polishing:
- Internal: Ra ≤0.3µm(12µin)
- External: Ra≤0.4µm (16µin)
- Highest degree of cleanability
- In-line porting allows for ease of installation and reduces liquid flow turbulence.
- Heavy-duty legs provide stability and ruggedness
- Spring-loaded sealing closure handle allows for optimized compressive force
- Suitable for Clean-in-Place and Steam-in-Place processes
- Design allows for thorough drainage of process fluid
▎Applications
- Pharmaceuticals: filtration of injectables, LVPs, water for injection, antibiotics, and other biological products
- Food and beverage: filtration of beer, wine, distilled spirits, juices, syrups
- Chemical processing: removal of sludge and gelatinous substances
▎Materials of Construction
| Shell Components | 304 or 316L Stainless Steel |
| Legs; Eye-bolts | AISI304 Stainless Steel |
| Seal Options | SILICONE, EPDM, FKM, NBR |
▎Operating Conditions
| Operating Temperature | 150°C (302°F) max. |
| Design Pressure | 10 bar (150 psi) |
* Maximum service flow rate advised is dependent on the cartridge selected.
▎Surface Finish
| Surface Quality | Internal: Ra ≤0.3µm(12µin) External: Ra≤0.4µm (16µin) |
| Finish, internal | Mechanical Polishing, Electropolishing |
| Finish, external | Mechanical Polishing, Electropolishing |
▎Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Certified to NSF/ANSI-61 and 372
- Halal certified
- Certification of Quality document can be provided upon request

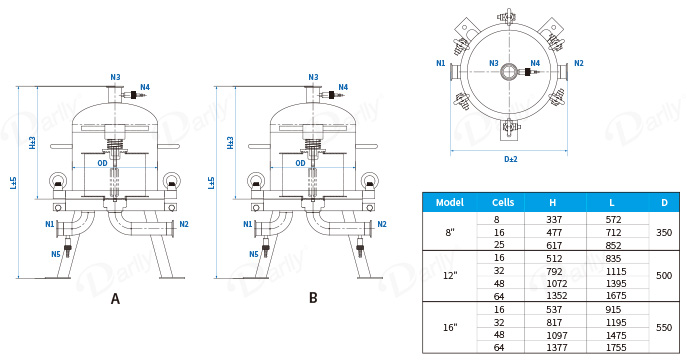

Dimensions (mm)

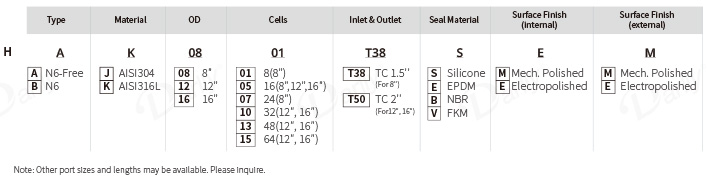

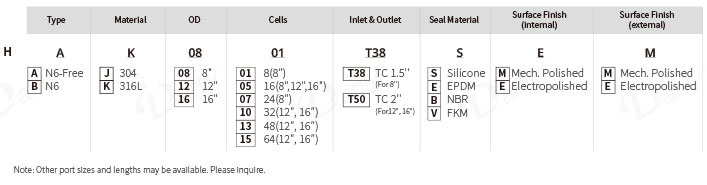

Order Information
