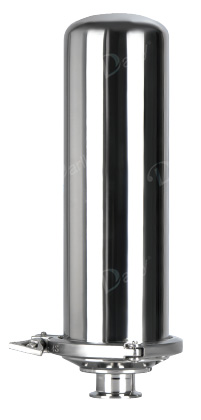

E Series Single-Round Sanitary Vent Filter Housings

E Series Single-Round Sanitary Vent Filter Housings

Sanitary Vent Filter Housings are comply with sanitary vessel design requirements. Suitable for gas sterilization filtration in the pharmaceutical and food industries. The top elbow is intended to prevent large particles and de...

Sanitary Vent Filter Housings are comply with sanitary vessel design requirements. Suitable for gas sterilization filtration in the pharmaceutical and food industries. The top elbow is intended to prevent large particles and debris from entering the housing.

▎Features


  • Ultra-high degree of polishing:
    • Internal: Ra ≤0.3µm(12μin)
    • External: Ra≤0.4μm (16μin)
  • Complies with GMP standards
  • Excellent cleanability
  • Design prevents accumulation of liquid
  • Top elbow prevents external particles and debris from entering the housing
  • The vent filter housings are available in single-opening A and top elbow B model, compatible with cartridge connection for 222 and 226

▎Applications


  • Allows sterile filtration of vented gas flow in the production and storage of
    • Pharmaceutical and bio-technology products
    • Fermentation process products
    • Food, beverages, potable water

▎Materials of Construction


Shell ComponentsAISI304 or AISI316L Stainless Steel
Seal OptionsSILICONE, EPDM, FKM, NBR

▎Operating Conditions


Operating Temperature150°C (302°F) max.
Design Pressure10 bar (150 psi)

▎Surface Finish


Surface Quality

Internal: Ra ≤0.3µm(12μin)

External: Ra≤0.4pm (16μin)

Finish, internalMechanical Polishing, Electropolishing
Finish, externalMechanical Polishing, Electropolishing

▎Product Quality


  • Manufactured within an ISO 9001:2015 certified quality management system
  • Halal certified
  • Certification of Quality document can be provided upon request

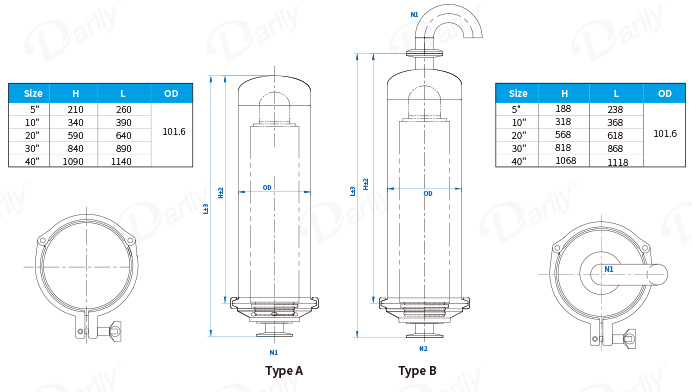

Dimensions (mm)

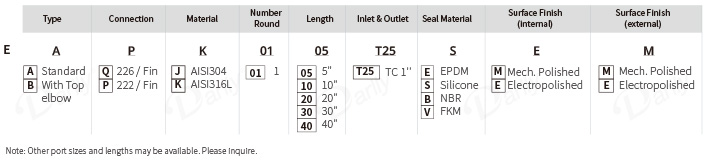

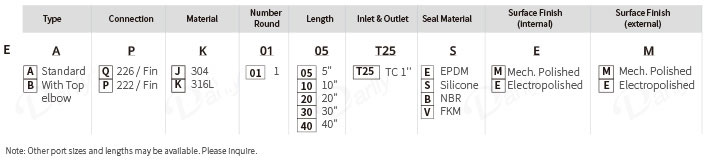

Order Information
