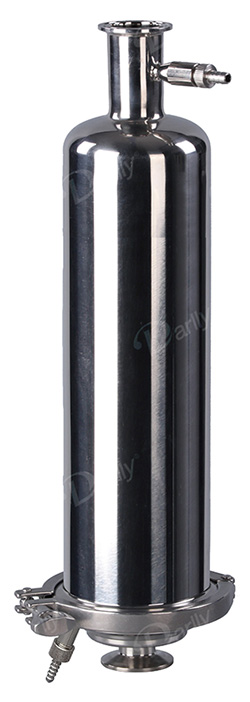

Sanitary In-Line Filter Housings are the ideal choice when the application calls for a compact and cost-effective design. Suitable for filtration of liquids and gases. Uses a convenient clamp body closure and drain/vent ports.

OVERVIEW SPECIFICATIONS ORDER INFORMATION DOWNLOAD

Sanitary In-Line Filter Housings are the ideal choice when the application calls for a compact and cost-effective design. Suitable for filtration of liquids and gases. Uses a convenient clamp body closure and drain/vent ports.

Applications

  • Particle filtration of pipeline liquids.
  • In-line gas filtration or as a respirator.
  • Filtration of beverages, edible oils, etc.

Features

  • Ultra-high degree of polishing: Internal: Ra ≤ 0.3μm, External: Ra ≤ 0.4μm
  • Meets GMP standards with smooth crevice-free welding and sanitary design.
  • Excellent cleanability & liquid drainage.
  • Vent/Drain Valve: the threaded sleeve is separated from stepped hose barb, so the connection tube will not rotate when venting or draining.
  • A strengthened closure clamp allows a maximum operating pressure of 1.0MPa.
  • Compatible with cartridge connection for 222 and 226.

Specifications

Surface Finish　
Finish Processing OptionsElectropolished
Mech. Polished
Polish QualityInternal: Ra ≤ 0.3μm, External: Ra ≤ 0.4μm
Materials
Shell Options304 or 316L Stainless Steel
Drain/Vent Valve304, 316L
Tri-Clamp304
Seal MaterialsSilicone, FKM, EPDM
Operating Conditions
Max. Operating Pressure1.0MPa (150psi)
Max. Operating Temperature140°C(284°F)
Connection
Shell ConnectionTri-clamp
Inlet & Outlet (N1, N2)1'' Tri-clamp(T25)
Vent Port(N3)Sanitary hose barb valve fit with integrity test interface
Drain Port (N4)Sanitary hose barb valve for 8mm i.D. tubing

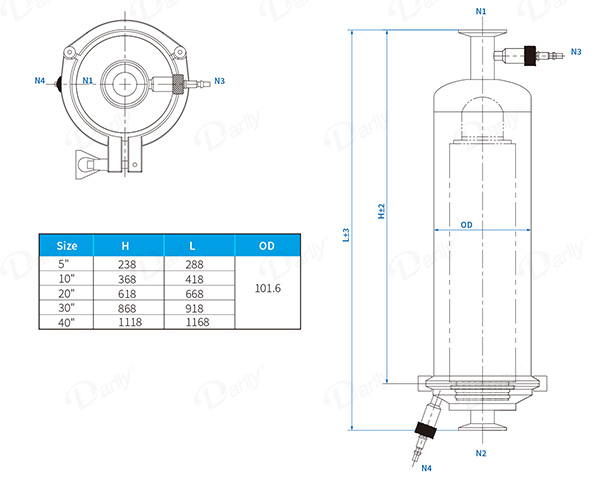

Dimensions (mm)

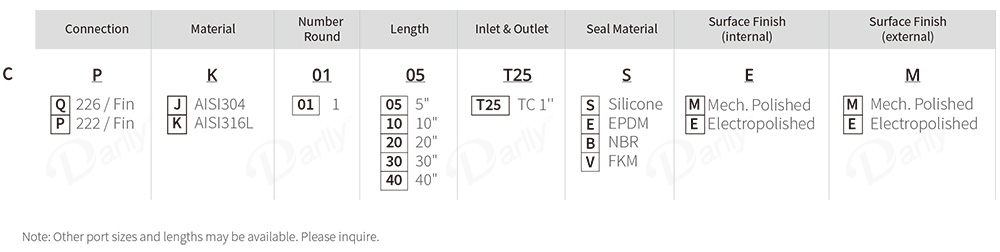

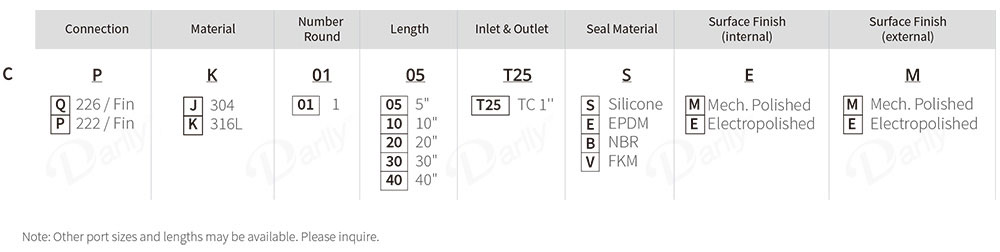

Order Information
