BCHF Series Single Round High Flow Filter Housings w/ Band Clamp Closure

BCHF Series Single Round High Flow Filter Housings w/ Band Clamp Closure

Manufactured of AISI304 or AISI316L stainless steel, these vertically-oriented single-cartridge housings accept Pall-type highflow filter cartridges in 20" and 40" lengths. The band clamp closure provides ease of servicing for ...

Manufactured of AISI304 or AISI316L stainless steel, these vertically-oriented single-cartridge housings accept Pall-type highflow filter cartridges in 20" and 40" lengths. The band clamp closure provides ease of servicing for fast cartridge change-out. Common industrial applications include: food & beverage production, chemical & refinery processes, oil & gas, water filtration, pulp & paper, metal finishing, and power generation. They're a standard choice to support higher flow rate applications with abundant options for cartridge media and retention ratings.

▎Features


  • Band clamp closure allows easy access for cartridge changes
  • Strengthened, welded legs provide a stable and durable installation
  • 150 psi (10 bar) operating pressure rating
  • Can support flow rates to 300 GPM
  • Surface passivation reduces potential for weld line corrosion

▎Applications


  • Suitable for the broadest range of industrial applications from process fluid streams for water, aqueous solutions, oils, and fine chemicals
  • Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water

▎Materials of Construction


Shell ComponentsAISI304 or AISI316L Stainless Steel
Seal OptionsEPDM (standard), SILCONE, NBR, FKM

▎Operating Conditions


Operating Temperature121°C (250°F) max.
Design Pressure10 bar (150 psi)

▎Surface Finish


Surface Quality

Glass beaded finish is standard Industrial electropolish is optional

▎Product Quality


  • Manufactured within an ISO 9001:2015 certified quality management system
  • Certified to NSF/ANSI-61 and 372
  • Halal certified
  • Certification of Quality document can be provided upon request

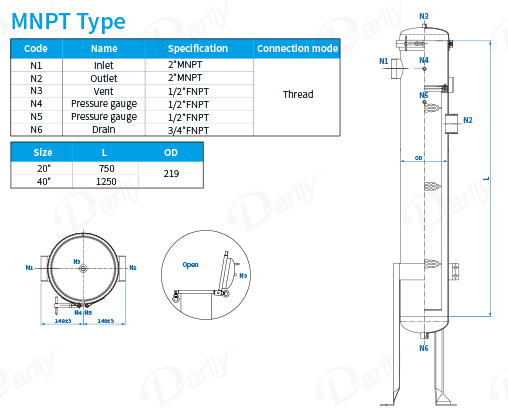

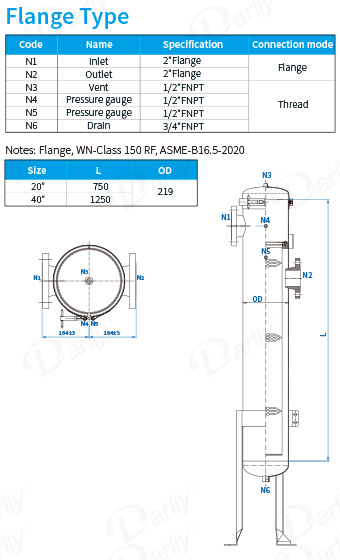

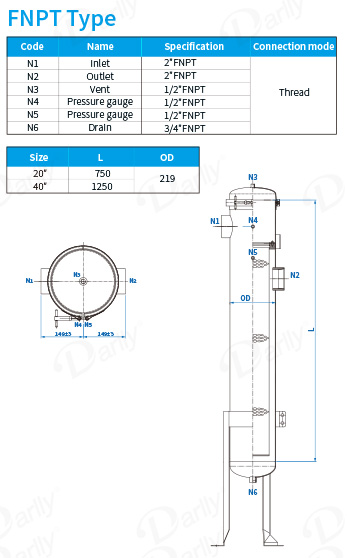

▎Dimensions (mm)

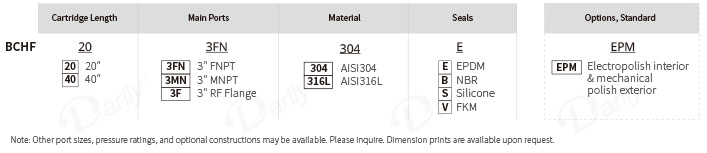

Order Information
