BCC series Multi-round Filter Housings w/ Band Clamp Closure

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. The flexible design accommodates DOE, 222/FIN and 222/FLAT style cartridges. They acceptstandard 2.5” to 2.75"OD filter car...

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. The flexible design accommodates DOE, 222/FIN and 222/FLAT style cartridges. They acceptstandard 2.5” to 2.75"OD filter cartridges in configurations of up to 21-around and up to 40" cartridge length. This housing series offers a great many options for cartridge quantity, flow rate capacity, and porting size. They're a standard choice to support higher flow rate applications with abundant options for cartridge media types and retention ratings.

▎Features

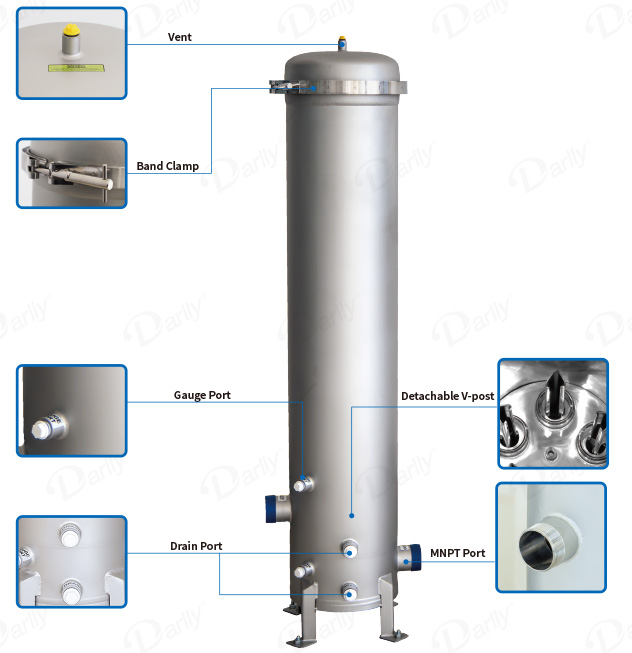

  • The band clamp closure offers ease of access to cartridges for quick change-out
  • Simplified design provides better economy versus swing bolt styles
  • Welded legs provide a stable and durable installation
  • 150 psi (10 bar) operating pressure rating
  • Can provide flow rates to 400 GPM and beyond
  • Surface passivation reduces potential for weld line corrosion

▎Applications


  • Suitable for the broadest range of industrial applications from process fluid streams for water, aqueous solutions, oils, and fine chemicals
  • Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water

▎Materials of Construction


Shell ComponentsAISI304 or AISI316L Stainless Steel
Seal OptionsEPDM (standard), SILCONE, NBR, FKM

▎Operating Conditions


Operating Temperature121°C (250°F) max.
Design Pressure10 bar (150 psi)

▎Surface Finish


Surface Quality

Glass beaded finish is standard Industrial electropolish is optional

▎Product Quality


  • Manufactured within an ISO 9001:2015 certified quality management system
  • Certified to NSF/ANSI-61 and 372
  • Halal certified
  • Certification of Quality document can be provided upon request

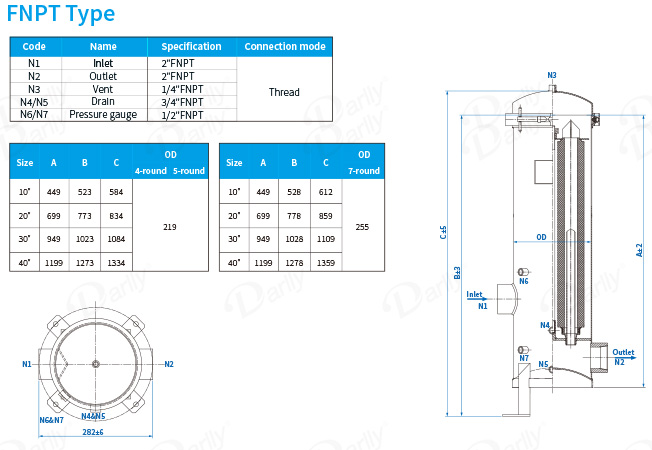

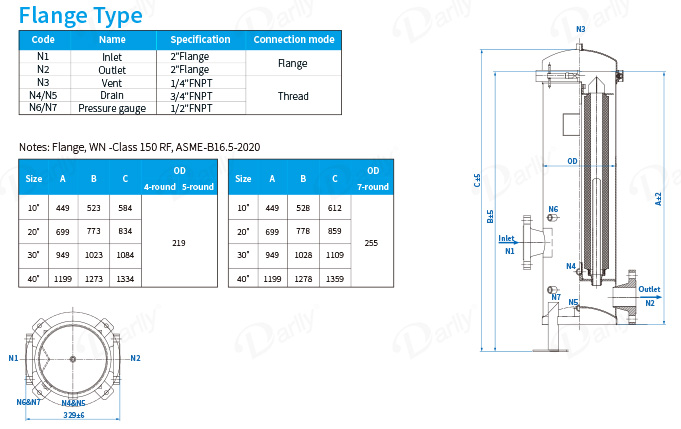

Dimensions (mm)

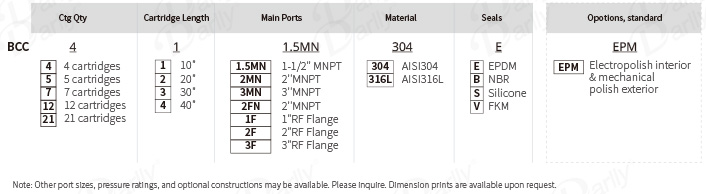

Order Information
