BCB series Single Bag Filter Housings w/ Band Clamp Closure

BCB series Single Bag Filter Housings w/ Band Clamp Closure

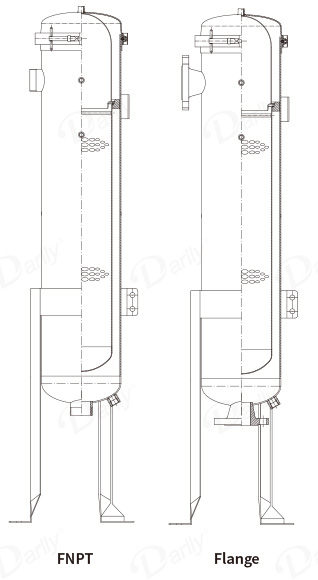

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. Single-bag housings accept standard Size #1 or Size #2 bag. Multiple options for porting type. Provided standard with drain...

OVERVIEW SPECIFICATIONS ORDER INFORMATION DOWNLOAD

Manufactured of AISI304 or AISI316L stainless steel for high-purity industrial filtration requirements. Single-bag housings accept standard Size #1 or Size #2 bag. Multiple options for porting type. Provided standard with drain port, vent port, and upstream & downstream gauge ports.

▎Features

  • Convenient band-clamp closure allows easy access for bag change-out
  • Simplified design provides better economy versus swing bolt styles
  • Adjustable leg assembly offers installation flexibility
  • 150 psi (10 bar) operating pressure rating
  • Can provide flow rates up to 200 GPM
  • Surface passivation reduces potential for weld line corrosion

▎Applications

  • Suitable for the broadest range of industrial applications from process fluid streams for water, aqueous solutions, oils, and fine chemicals
  • Used in food and beverage production: filtration of juices, syrups, food ingredients, and bottled water

▎Materials of Construction

Shell ComponentsAISI304 or AISI316L Stainless Steel
Seal OptionsEPDM (standard), SILCONE, NBR, FKM

▎Operating Conditions

Operating Temperature150°C (302°F) max.
Design Pressure10 bar (150 psi)

▎Surface Finish

Surface Quality

Glass beaded finish is standard Industrial electropolish is optional

▎Product Quality

  • Manufactured within an ISO 9001:2015 certified quality management system
  • Certified to NSF/ANSI-61 and 372
  • Halal certified
  • Certification of Quality document can be provided upon request

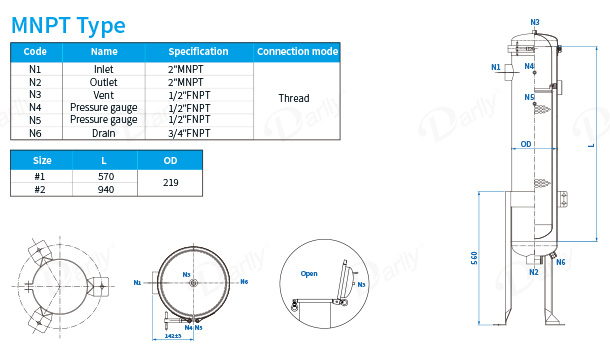

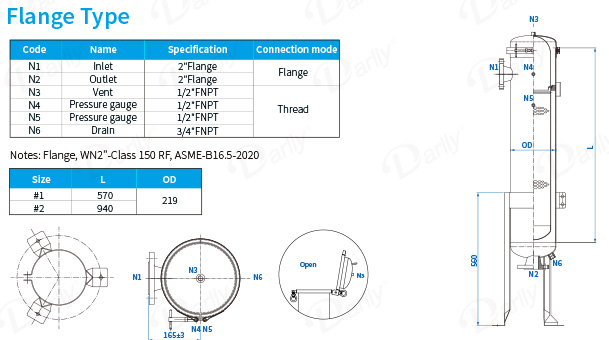

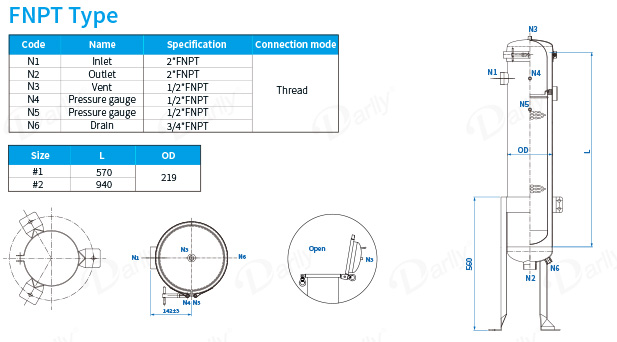

Dimensions (mm)

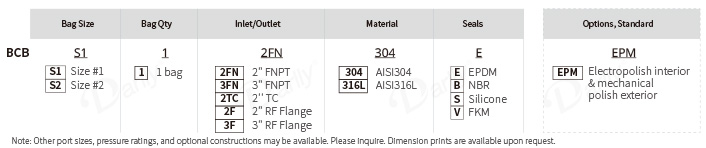

Order Information

CataLog

download pdf

pdf
