A Series – Sanitary Single-Round Liquid Filter Housings

A Series – Sanitary Single-Round Liquid Filter Housings

Sanitary Single-Round Liquid Filter Housings are designed to meet requirements for sanitary construction with smooth crevice-free welding and TC-type sanitary connections. Easy to clean and disassemble. Suitable for low flow ra...

Sanitary Single-Round Liquid Filter Housings are designed to meet requirements for sanitary construction with smooth crevice-free welding and TC-type sanitary connections. Easy to clean and disassemble. Suitable for low flow rate applications with low-to-medium pressure conditions. This design is widely used in pharmaceutical, bio-technology, and food/beverage industries.

Applications


  • Pharmaceuticals: filtration of injectables, LVPs, water for injection, antibiotics, and other biological products
  • Food and beverage: filtration of beer, wine, distilled spirits, juices, syrups, and drinking water
  • Petrochemical industry: filtration of oilfield water, organic solvents, acids, and alkaline fluids
  • Microelectronics: pre-filtration of high-purity water

Features


  • Ultra-high degree of polishing: Internal: Ra≤0.3μm External: Ra≤ 0.4μm
  • Meets GMP standards with smooth crevice-free welding and sanitary design. Excellent cleanability & liquid drainage.
  • Vent/Drain Port: The threaded sleeve is separated from stepped hose barb, so the connection tube will not rotate when venting or draining.
  • A strengthened closure clamp allows a maximum operating pressure of 1.0MPa.
  • With a small footprint and ease of disassembly, this series is ideally suited for use in the manufacture of pharmaceutical and food/beverage products.
  • The heavy-duty housing legs have strengthened threads for stability and ruggedness. Adjustable nuts on the legs allow height adjustment for installation convenience.
  • Suitable for Suitable for Clean-in-Place and Steam-in Place processes.
  • Compatible with cartridge connection for 222 and 226.
  • Optional N6 drain port (sampling port).

Specifications


Surface Finish
Finish Processing Optionsctropolished, Mech. Polished
Polish QualityInternal: Ra ≤ 0.3μm, External: Ra ≤ 0.4μm
Materials
Shell Options304 or 316L Stainless Steel
Drain/Vent Valve304, 316L
Tri-Clamp304
Stabilizer Blade304
Seal MaterialsSilicone, FKM, EPDM
Operating Conditions
Max. Operating Pressure1.0MPa (150psi)
Max. Operating Temperature140°C(284°F)
Connection
Shell-to-Base ConnectionTri-clamp
Inlet & Outlet (N1, N2)1'' Tri-clamp(T25)
Vent Port(N4)Sanitary hose barb valve fit with integrity test interface
Drain Port (N5, N6)Sanitary hose barb valve for 8mm i.D. tubing
Pressure Gauge Port(N3)1.5" Tri-clamp

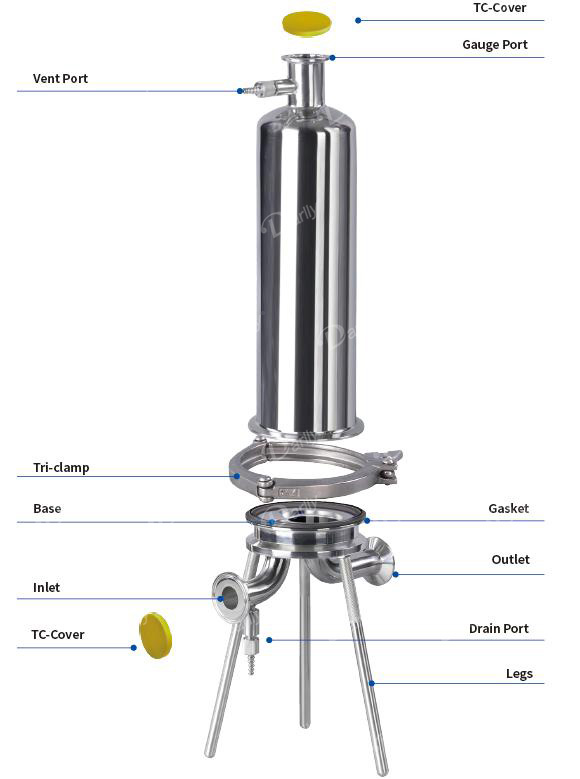

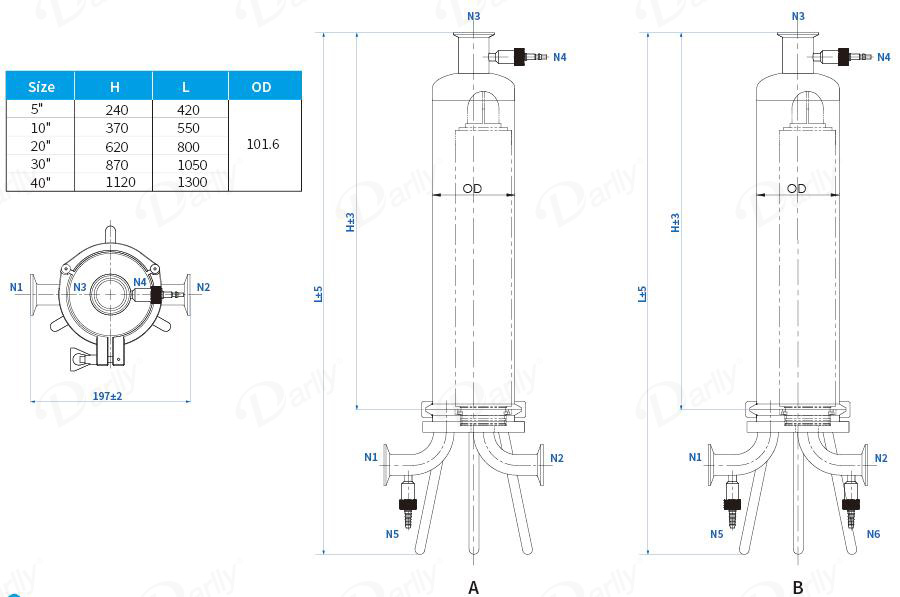

Dimensions (mm)

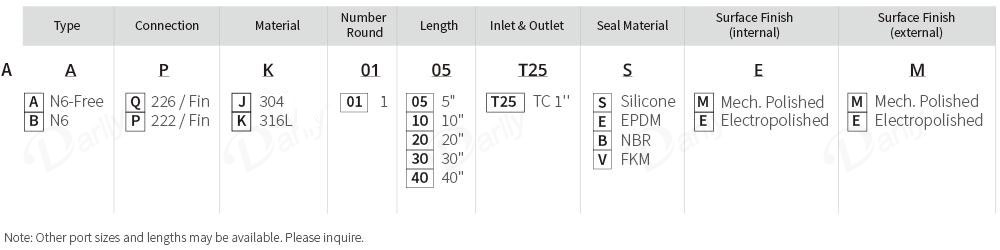

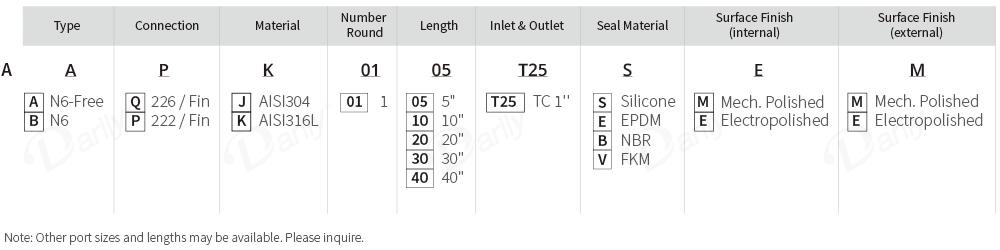

Order Information
